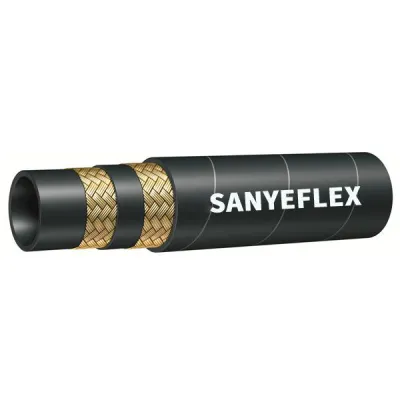

DIN EN 857 2SC (Wrapped Cover / Smooth Cover)

Mangueira hidráulica trancada de fio de aço do padrão SAE/DIN

DIN EN 857 2SC Mangueira hidráulica compacta, sem necessidade de cortar mangueira

Essas mangueiras têm um diâmetro externo menor do que as mangueiras 2SN/R2AT, o que resolve as inconveniênicas causadas pelo espaço de instalação apertado e estreito de alguns equipamentos. Não há necessidade de remover a borracha externa nos conectores da mangueira.

Superfície enrolada/lisa

Camada interna de borracha: borracha especial com boa resistência a óleo

Camada de reforço: duas camadas trancadas de fio de aço revestido a cobre de alta resistência

Camada externa de borracha: borracha especial resistente a atrito e intempéries

Faixa de temperatura: -40°C a +125°C

Finalidade: para transporte de fluidos hidráulicos e fluidos à base de água

Informe-se agora Próximo produto

Especificação

Specification

DN	HOSE ID		Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight
DN	Inch	mm	mm	MPa	Psi	MPa	Psi	mm	kg/m
6	1/4	6.4	14.2	45.0	6525	180	26100	75	0.28
8	5/16	7.9	16.0	40.0	5800	160	23200	85	0.36
10	3/8	9.5	18.3	37.5	5438	150	21750	90	0.41
13	1/2	12.7	21.5	31.0	4495	124	17980	130	0.59
16	5/8	15.9	24.7	30.0	4350	120	17400	170	0.63
19	3/4	19.0	28.6	28.7	4162	115	16675	200	0.80
25	1	25.4	36.6	22.5	3263	90	13050	250	1.17

EN 857 Hose

EN 857 2SC steel wire reinforced hydraulic hose is similar to EN 853 2SN steel wire reinforced hydraulic hose in structure. The difference is that it has smaller outside diameter, which is suitable for the equipment piping whose installation space is compact and narrow. It is also composed of three parts: tube, reinforcement and cover. The tube is made from oil, abrasion and corrosion resistant synthetic rubber, making it transport water and petroleum-based hydraulic fluids without any deformation in the working temperature of -40 °C to +100 °C. The reinforcement is made from two layers of high tensile steel wires, making the hose highly resistant to high pressure. Therefore, the hose has excellent performance in the high pressure working conditions. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, chemical fluids, weather, ozone, aging, sunlight and cut.

produtos relacionados

DIN EN 857 2SC (Wrapped Cover / Smooth Cover)

EN 857 2SC steel wire reinforced hydraulic hose is similar to EN 853 2SN steel wire reinforced hydraulic hose in structure. The difference is that it has smaller outside diameter, which is suitable for the equipment piping whose installation space is compact and narrow.

Veja mais

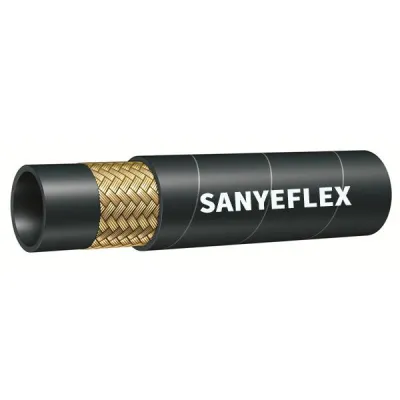

DIN EN 857 1SC (Wrapped Cover / Smooth Cover)
