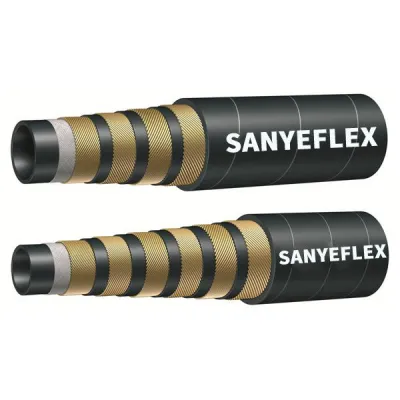

Mangueira hidráulica enrolada de fio de aço SAE 100R13
Aparência: superfície enrolada/lisa
Camada interna de borracha: borracha sintética resistente a óleo
Camada de reforço: quatro ou seis camadas de fio de aço revestido a cobre de alta resistência enrolado em direções alternadas
Camada externa de borracha: borracha sintética resistente a óleo, atrito e intempéries
Padrões de execução: padrão SAE 100R13, padrão GB/T10544-2013
Faixa de temperatura: -40℃ a +125℃
Finalidade: para o transporte de óleo hidráulico à base de petróleo, adequado para mangueiras de alta temperatura e média pressão em condições adversas.
Especificação
DN | HOSE ID | Wire OD | Hose OD | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
| Inch | mm | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | |
| 19 | 3/4 | 19.0 | 28.4 | 32.1 | 34.5 | 5000 | 138.0 | 20000 | 240 | 1.68 |
| 25 | 1 | 25.4 | 35.2 | 38.7 | 34.5 | 5000 | 138.0 | 20000 | 300 | 2.24 |
| 32 | 1-1/4 | 31.8 | 41.9 | 50.2 | 34.5 | 5000 | 138.0 | 20000 | 420 | 3.90 |
| 38 | 1-1/2 | 38.1 | 48.8 | 57.7 | 34.5 | 5000 | 138.0 | 20000 | 500 | 5.07 |
| 51 | 2 | 50.8 | 63.2 | 71.5 | 34.5 | 5000 | 138.0 | 20000 | 630 | 7.91 |
SAE 100 R13 steel wire spiral hydraulic hose is suitable for transporting petroleum-based hydraulic oil and is also mainly used in high-pressure service. It consists of three parts: tube, reinforcement and cover. The tube is made of black oil-resistant synthetic rubber, which gives it excellent performance in transporting petroleum-based hydraulic fluids. The reinforcement is made of multiple layers of high-tensile, high-strength thick spiral steel wire in alternating directions, giving the hose an extremely high working pressure. In addition, wire-wound hydraulic hoses can withstand higher working pressures than wire-reinforced hydraulic hoses. Therefore, the hose has outstanding performance in ultra-high pressure environment. The cover is made of high quality black synthetic rubber, which makes the hose resistant to abrasion, corrosion, cutting, weather, ozone, aging and sunlight.
High Pressure Rating: SAE 100R13 hose is rated for working pressures of up to 5,000 psi, making it suitable for use in high-pressure hydraulic systems.
High-Impulse Applications: This hose is designed to withstand high impulse pressure and cyclic pressure stress, making it ideal for use in high-impact applications.
Multilayer Construction: SAE 100R13 hose features a multilayer construction, with four or six layers of spirally-wrapped steel wire reinforcement, which provides superior strength and flexibility.
Abrasion and Weather Resistance: The outer cover of the hose is made from abrasion-resistant synthetic rubber, which protects the hose from damage and extends its service life. It is also resistant to weather and ozone, ensuring that it can be used in a variety of environments.
Versatile Applications: This hose is suitable for use in a wide range of hydraulic applications, including mining, construction, and agricultural machinery.
