Mangueira de compressor de ar da série super flexível

SYB-861K-S

Mangueira de compressor de ar resistente a alta temperatura da série super flexível

Superfície enrolada

Camada interna de borracha: borracha especial com boa resistência a óleo e alta temperatura

Camada de reforço: uma camada trançada de fio de aço revestido a cobre de alta resistência

Camada externa de borracha: borracha especial azul resistente ao atrito e às intempéries

Faixa de temperatura: -40°C a +135°C, pico de 150°C




Especificação

TYPEDASHI.D.W.D.O.D.W.P.B.P.Min B.RWeight
-InchmmmmmmMPaPsiMPaPsimmkg/m
SY1KS-641/46.310.612.222.5326290.0130501000.24
SY1KS-855/16812.11421.5311785.0123251150.28
SY1KS-1063/81014.516.718.0261072.0104401300.37
SY1KS-1381/212.517.519.816.0232064.092801800.41
SY1KS-16105/81620.622.913.0188552.075402000.51
SY1KS-19123/41924.626.910.5152042.060902400.66
SY1KS-251612532.534.68.8127635.050753000.96
SY1KS-32201-1/431.539.3426.391525.036254201.17
SY1KS-38241-1/23845.649.15.072520.029005001.50
SY1KS-513225158.762.54.058016.023206301.96



produtos relacionados

  • DIN EN856 4SH (Wrapped Cover / Smooth Cover)

    DIN EN856 4SH (Wrapped Cover / Smooth Cover)

    INNER TUBE: oil resistant synthetic rubber
    REINFORCEMENT: four spirals of high tensile steel wire
    COVER: abrasion and weather resistant synthetic rubber
    TEMPERATURE RANGE: -4℃ to +100℃

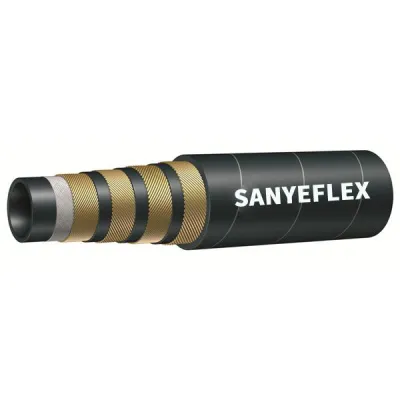

  • DIN EN856 4SP

    DIN EN856 4SP

    INNER TUBE: oil resistant synthetic rubber
    REINFORCEMENT: four spirals of high tensile steel wire
    COVER: abrasion and weather resistant synthetic rubber
    TEMPERATURE RANGE: -4℃ to +100℃
  • SAE 100R2/DIN EN853 2SN

    SAE 100R2/DIN EN853 2SN

    SAE 100R2 Hydraulic Hose is made of oil-resistant tubing and is suitable for transporting petroleum-based hydraulic fluids. In addition, it can transport oil without excessive heat and leakage. It is mainly used for some mobile equipment, such as agricultural tractors, dump trucks and in-plant hydraulic equipment.
