Suction & Discharge Water Hose

Tube: Black synthetic rubber
Reinforcement: Plies of synthetic cords with helix wire
Cover: Black synthetic rubber, wrapped type, abrasion, and weather-resistant
Temperature: –30℃~+80℃
Application: Mandrel built heavy-duty suction and discharge hose for the handling of water, inert fluid, sewerage, and waste water, where optimum flexibility is required.

Informe-se agora

Especificação

Hose I.D		Hose O.D	Working Pressure		Burst Pressure		Weight
mm	inch	mm	bar	psi	bar	psi	kg/m
25	1	35	10	150	30	450	0.80
32	1 1/4	42	10	150	30	450	0.95
38	1 1/2	48	10	150	30	450	1.15
51	2	61	10	150	30	450	1.50
64	2 1/2	75	10	150	30	450	1.95
76	3	88	10	150	30	450	2.40
89	3 1/2	102	10	150	30	450	2.90
102	4	114	10	150	30	450	3.30
127	5	141	10	150	30	450	5.20
152	6	166	10	150	30	450	6.70
203	8	221	10	150	30	450	11.20
254	10	272	10	150	30	450	15.80

produtos relacionados

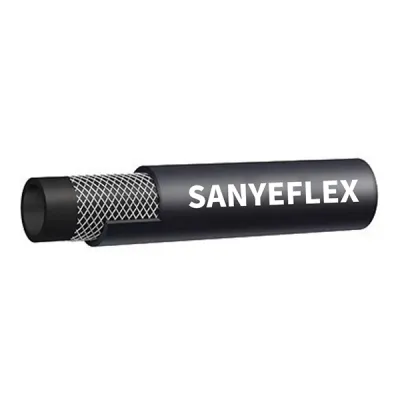

Oil / Fuel Hose (Surface cover)

Tube: NBR synthetic rubber, black, smooth
Reinforcement: high tensile textile cords
Cover: black Neoprene rubber, smooth, oil, ozone, weather, abrasion resistant
Temperature: -30°C + 80°C

Veja mais

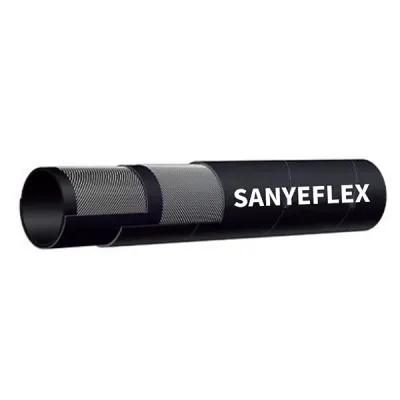

Oil / Fuel Hose (Wrapped cover)

Tube: NBR synthetic rubber, black, smooth
Reinforcement: High tensile textile cords
Cover: black Neoprene rubber, wrapped, oil, ozone, weather, abrasion-resistant
Temperature: -30°C + 80°C

Veja mais

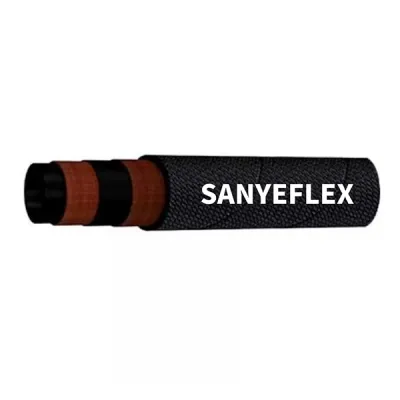

Sandblast Hose
